[Android] 액티비티 간의 화면 전환 방법, 라이프 사이클 함수 순서

예제

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    package="com.fullspringwater.multiple">

    <application
        android:allowBackup="true"
        android:dataExtractionRules="@xml/data_extraction_rules"
        android:fullBackupContent="@xml/backup_rules"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.Multiple"
        tools:targetApi="31">
        <activity
            android:name=".ThirdActivity"
            android:exported="false" />
        <activity
            android:name=".SecondActivity"
            android:exported="false" />
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="첫번째 액티비티"
        android:textSize="30sp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.497"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0.111" />

    <Button
        android:id="@+id/button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="44dp"
        android:text="두번째 액티비티로 이동"
        android:textSize="30sp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/textView" />

</androidx.constraintlayout.widget.ConstraintLayout>

MainActivity.java

package com.fullspringwater.multiple;

import androidx.appcompat.app.AppCompatActivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Button button = findViewById(R.id.button);

        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                // 버튼을 누르면 다른 액티비티가 화면에 나오도록 한다.
                Intent intent = new Intent(MainActivity.this, SecondActivity.class);
                startActivity(intent);

            }
        });
        Log.i("MyMultiple", "Main : onCreate()");
    }

    @Override
    protected void onResume() {
        super.onResume();
        Log.i("MyMultiple", "Main : onResume()");
    }

    @Override
    protected void onPause() {
        super.onPause();
        Log.i("MyMultiple", "Main : onPause()");
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        Log.i("MyMultiple", "Main : onDestroy()");
    }
}

activity_second.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".SecondActivity">

    <TextView
        android:id="@+id/textView2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="두번째 액티비티"
        android:textSize="30sp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.497"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0.111" />

    <Button
        android:id="@+id/btnSecond"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="44dp"
        android:text="세번째 액티비티로 이동"
        android:textSize="30sp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/textView2" />
</androidx.constraintlayout.widget.ConstraintLayout>

SecondActivity.java

package com.fullspringwater.multiple;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;

public class SecondActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_second);
        Log.i("MyMultiple", "Second : onCreate()");

        Button btnSecond = findViewById(R.id.btnSecond);

        btnSecond.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(SecondActivity.this, ThirdActivity.class);
                startActivity(intent);
            }
        });
    }
    @Override
    protected void onResume() {
        super.onResume();
        Log.i("MyMultiple", "Second : onResume()");
    }

    @Override
    protected void onPause() {
        super.onPause();
        Log.i("MyMultiple", "Second : onPause()");
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        Log.i("MyMultiple", "Second : onDestroy()");
    }
}

activity_third.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".ThirdActivity">

    <TextView
        android:id="@+id/textView3"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="80dp"
        android:text="세번째 액티비티"
        android:textSize="30sp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.497"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

ThirdActivity.java

package com.fullspringwater.multiple;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.util.Log;

public class ThirdActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_third);
        Log.i("MyMultiple", "Third : onCreate()");
    }
    @Override
    protected void onResume() {
        super.onResume();
        Log.i("MyMultiple", "Third : onResume()");
    }

    @Override
    protected void onPause() {
        super.onPause();
        Log.i("MyMultiple", "Third : onPause()");
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        Log.i("MyMultiple", "Third : onDestroy()");
    }
}

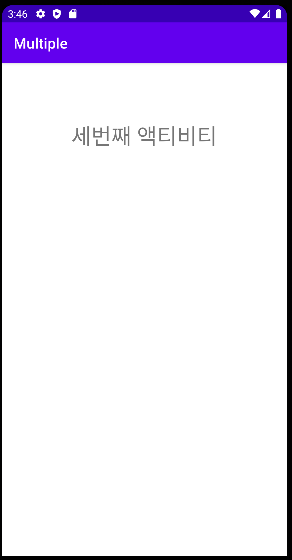

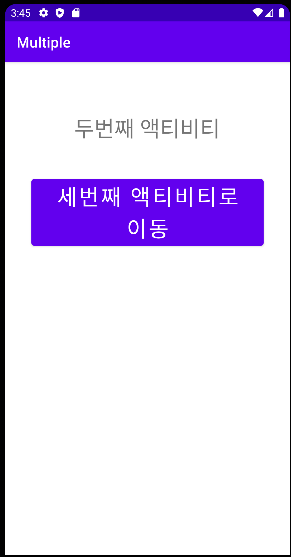

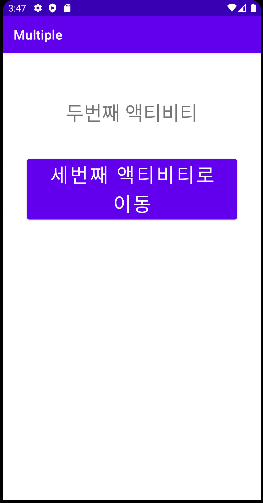

실행화면

두번째 액티비티로 이동 버튼 누르기



세번째 액티비티로 이동 버튼 누르기



뒤로가기 버튼 누르기



뒤로가기 버튼 누르기

뒤로가기 버튼 누르기
